az-scout: Scout Azure regions for VM availability, zone mappings, deployment planning and more

When planning resilient VM deployments across Azure regions and Availability Zones, operators often face a set of recurring questions that are surprisingly hard to answer quickly:

• Do my subscriptions share the same physical datacenter for logical zone 1?
• Which VM SKUs are available in all three zones with enough quota headroom?
• What is the Spot placement likelihood for this SKU family right now?
• Which deployment plan gives me the best confidence score across zones?
• How can I guarantee capacity for my VM allocation in this region?

These questions require correlating data from multiple Azure ARM endpoints — zone mappings, SKU catalogs, quota usage, spot placement scores, and retail pricing — then cross-referencing it across subscriptions. Doing this manually in the portal or with CLI scripts can be tedious and error-prone.

To address this, Remy Sabile and I co-authored az-scout: a multi-purpose tool that brings all of this data together in one web UI, with an integrated AI assistant and an MCP server for AI agent integration.

And the best part? It's fully extensible through a plugin system, allowing anyone to add new capabilities!

What az-scout does

az-scout is a Python web application built with FastAPI. Once authenticated with Azure credentials (az login or any method supported by DefaultAzureCredential), it provides:

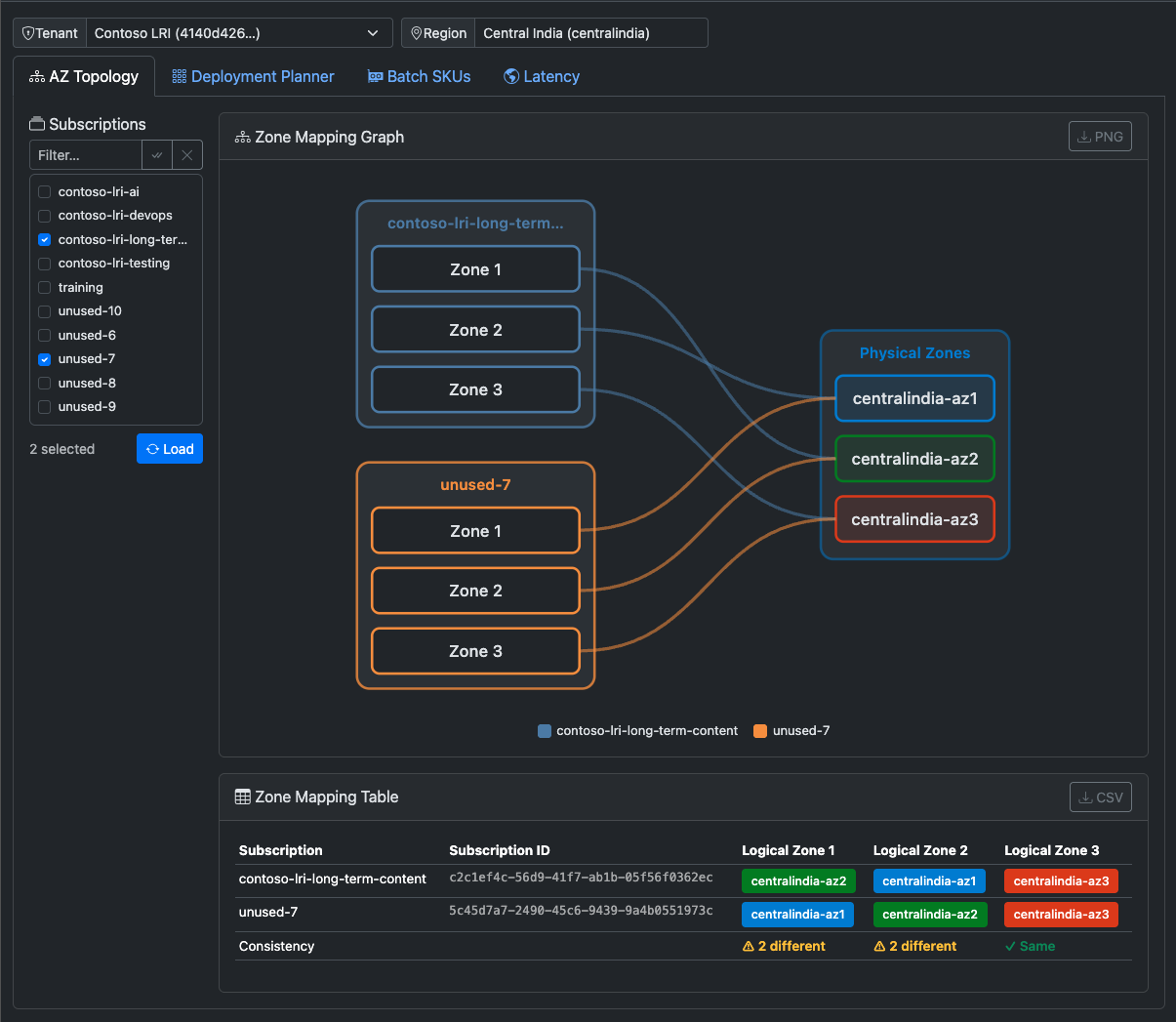

• AZ Topology — visualize logical-to-physical zone mappings across all your subscriptions for a given region, rendered as a D3.js graph to instantly spot whether two subscriptions share the same physical zone for a given logical number.

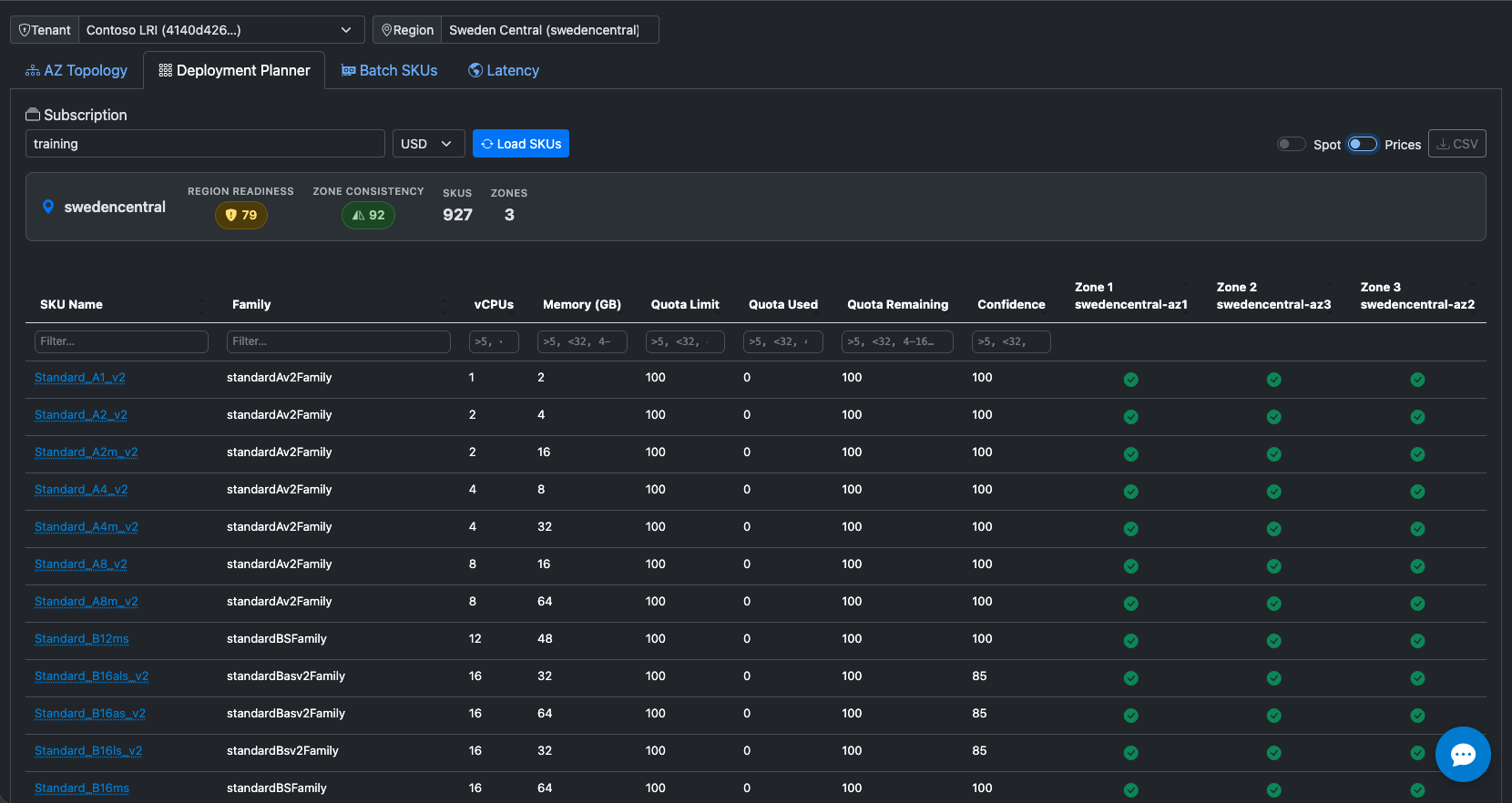

• Deployment Planner — list VM SKUs with zone availability, restrictions, quota headroom, Spot placement scores, and pricing. Each SKU gets a Deployment Confidence Score (0–100) synthesized from multiple signals.

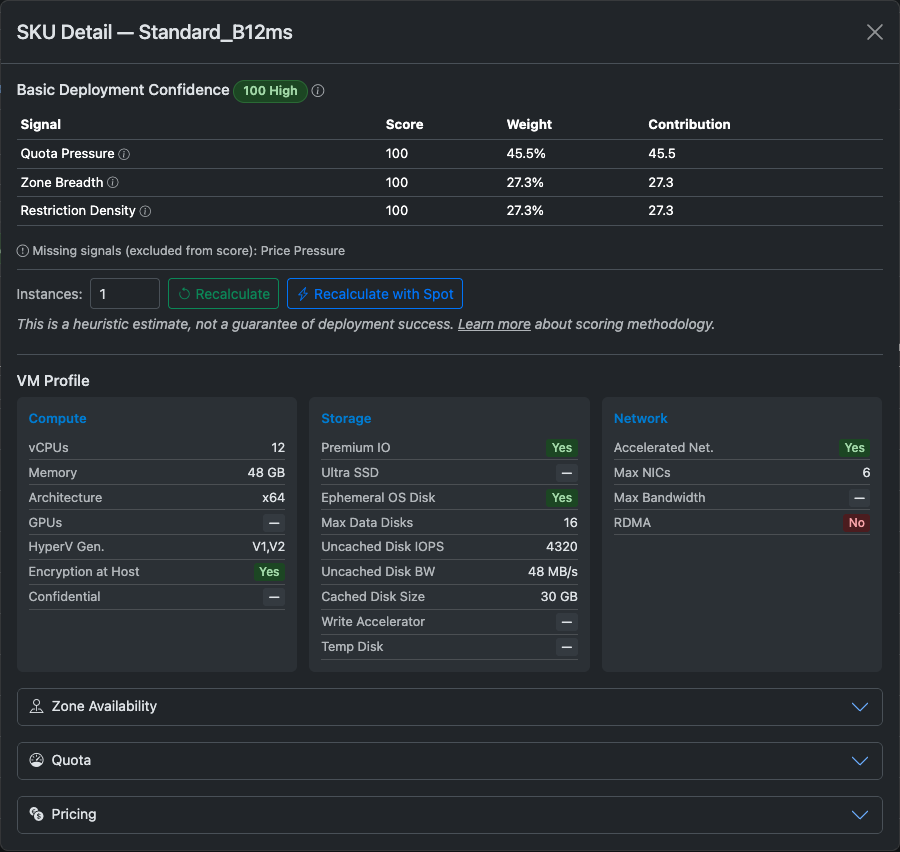

Click on any SKU to drill into detailed pricing (PayGo, Spot, Reserved Instances, Savings Plans) and VM profile:

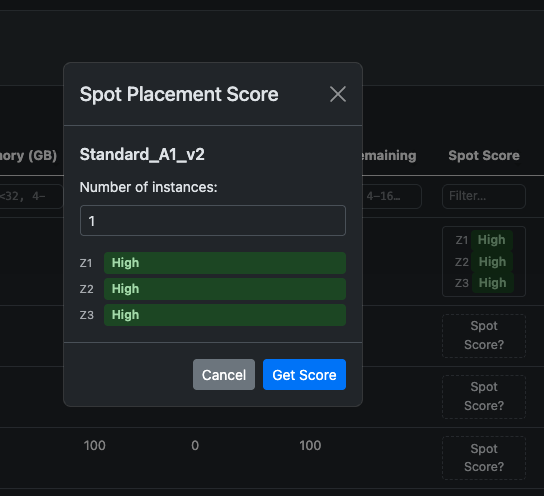

Pricing detail	Spot placement scores

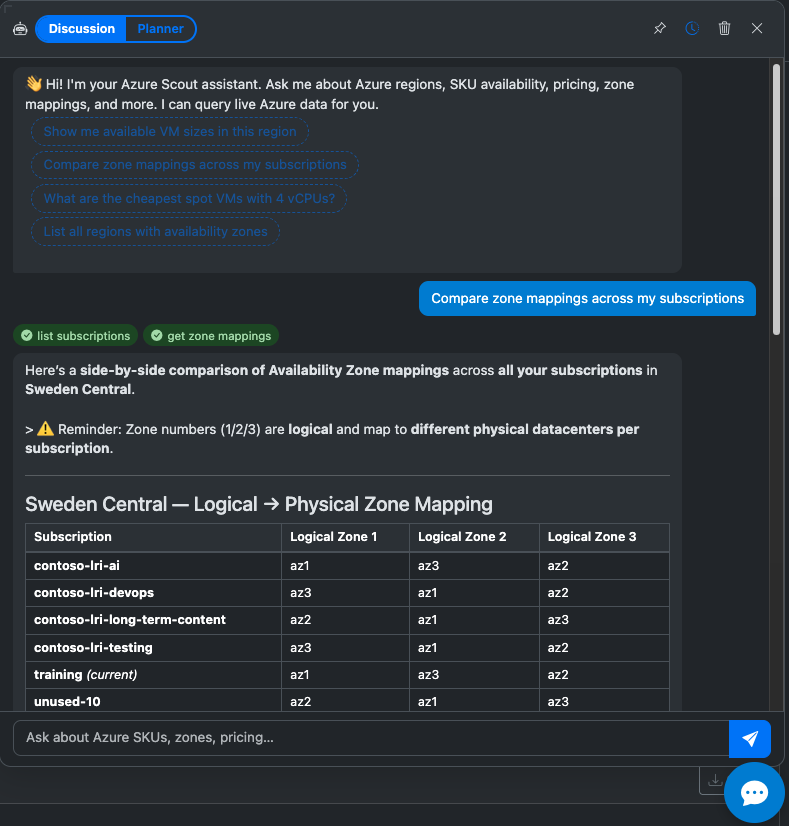

• AI Chat Assistant — an optional chat panel powered by Azure OpenAI with tool-calling support. It can query zones, SKUs, pricing, and spot scores on your behalf and present structured results.

• MCP Server — a Model Context Protocol server that exposes all capabilities as MCP tools, allowing AI agents (Claude Desktop, VS Code Copilot, etc.) to query your Azure infrastructure directly.

The tool is designed for local use — you run it on your workstation, and it talks directly to Azure APIs using your credentials.

Quick start

If you have Python ≥ 3.11 and valid Azure credentials:

1# If not already done:
2az login
3
4# No install required — just run it
5uvx az-scout

Your browser opens at http://127.0.0.1:5001 and you are ready to go.

For a permanent installation with uv:

1uv install az-scout
2az-scout

Or with Docker:

1docker run --rm -p 8000:8000 \
2  -e AZURE_TENANT_ID=<your-tenant> \
3  -e AZURE_CLIENT_ID=<your-client-id> \
4  -e AZURE_CLIENT_SECRET=<your-secret> \
5  ghcr.io/az-scout/az-scout:latest

Architecture overview

az-scout follows a clean separation of concerns that makes it both maintainable for the core and extensible for plugins:

The azure_api module is the heart of the application. It provides helper functions to interact with Azure APIs: plugins can call these functions to get consistent authentication, retry logic, and error handling without worrying about the underlying API details.

The plugin system

One of the most interesting aspects of az-scout is its plugin architecture. The core application handles zone topology and deployment planning, but any additional capability is added through plugins — pip-installable Python packages that are auto-discovered at startup.

How plugins work

A plugin is a standard Python package that registers an az_scout.plugins entry point:

1[project.entry-points."az_scout.plugins"]
2my_plugin = "az_scout_myplugin:plugin"

At startup, az-scout discovers all installed plugins via importlib.metadata.entry_points and wires up their contributions automatically — no configuration needed.

Each plugin can contribute any combination of:

Creating a plugin

az-scout includes a built-in scaffold generator:

1az-scout create-plugin

This launches an interactive wizard that will asks for a plugin name, slug, package name, and GitHub repository details, then generates a complete project structure with routing, MCP tools, UI tab, tests, CI workflows, and proper packaging.

Existing plugins

Several plugins already extend az-scout's capabilities:

AI integration

az-scout integrates with AI in three ways:

AI Chat Assistant

When configured with Azure OpenAI credentials (AZURE_OPENAI_ENDPOINT, AZURE_OPENAI_API_KEY, AZURE_OPENAI_DEPLOYMENT), a chat panel appears in the UI. The assistant can:

• Call MCP tools to help providing the best possible answer to user questions about zones, SKUs, pricing, spot scores…
• Clickable actions or prompt suggestions
• Switch between discussion mode (general Q&A), planner mode (guided deployment advisor).

Plugins can contribute their own chat modes with domain-specific system prompts: e.g., AVS SKU advisor.

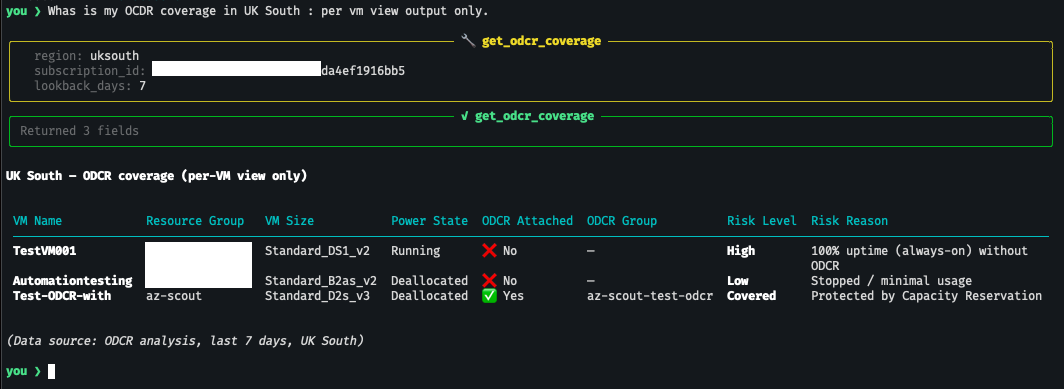

CLI Chat

az-scout also includes an interactive AI chat that runs entirely in the terminal — no browser needed. It uses the same Azure OpenAI backend and MCP tools as the web UI chat.

1# Interactive session
2az-scout chat
3
4# One-shot query
5az-scout chat "What SKUs are available in francecentral with at least 8 vCPUs?"

The CLI chat features Rich-rendered streaming (markdown, tables, code blocks), tool-call visualization, interactive numbered choices, conversation history with arrow-key navigation, and tab auto-completion for slash commands like /region, /mode, /subscription.

MCP Server

The built-in MCP server exposes all capabilities as tools that any MCP-compatible AI agent can call. This means you can use Claude Desktop, VS Code Copilot, or any other MCP client to query your Azure infrastructure through natural language — without the web UI.

The MCP server is available both via stdio (for local CLI integration) and Streamable HTTP (for hosted deployments):

1# stdio transport (local)
2az-scout mcp
3
4# Streamable HTTP (for Container Apps, etc.)
5az-scout mcp --http --port 8080

The default web running mode embeds a Streamable HTTP MCP server side to side with the web UI capabilities: enabling a combined use of the web interface and AI agents simultaneously.

Plugin in AI integration

Each plugin can contribute to the AI integration by providing:

• MCP tools — any plugin function can be exposed as an MCP tool with a simple decorator, making it callable from AI agents.
• Chat modes — plugins can define their own chat modes with custom system prompts, allowing them to provide specialized AI assistants for their domain.
• Prompt guidance — plugins can inject additional context into the default chat mode, enriching the assistant's knowledge with plugin-specific information.

What's next

az-scout is an evolving project. The plugin ecosystem is growing, and the core continues to gain new capabilities. Upcoming posts in this series will cover:

• AZ Topology — understanding logical-to-physical zone mappings and why they matter for multi-subscription architectures
• Deployment Planner — how the Confidence Score is computed and how to interpret its signals
• MCP integration — using az-scout as an AI agent backend for infrastructure planning
• External plugins — deep dives into community-contributed plugins and how they leverage the architecture

Resources

• Documentation: docs.az-scout.com
• GitHub: github.com/az-scout/az-scout
• PyPI: pypi.org/project/az-scout
• Start your plugin adventure: it is as simple as az-scout create-plugin
